BMA-KFB2-01/.086″/DZ-FB2-1(75)

BMA-KFB2-01/.086″/DZ-FB2-1(75)

RF Cable Assemblies / BMA Cable Assemblies

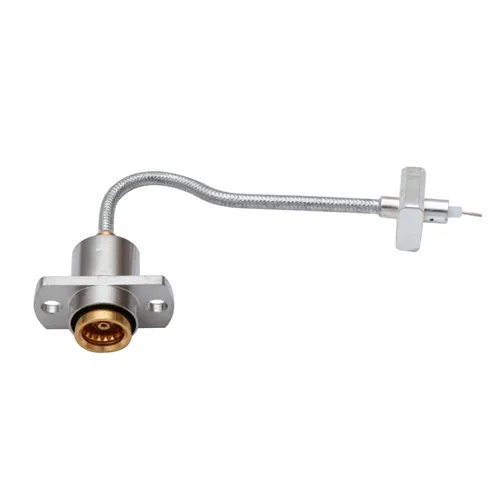

BMA-DZ,.086",50Ω，Brass/Gold，75mm
  • Communication Network
  • Instrument Testing
  • Antenna

General Specifications

Part Number 22400ACA2Y9
Series RF Cable Assemblies
Connector A Series BMA-KFB2-01
Connector A Gender Jack (Female)
Connector A Body Style Straight
ConnectorB Series DZ-FB2-1
Connector B Gender \
Connector B Body Style Straight
Cable Length 75mm
Cable Type .086"
Part Number 22400ACA2Y9
Series RF Cable Assemblies
Connector A Series BMA-KFB2-01
Connector A Gender Jack (Female)
Connector A Body Style Straight
ConnectorB Series DZ-FB2-1
Connector B Gender \
Connector B Body Style Straight
Cable Length 75mm
Cable Type .086"

Electrical Specifications

Impedance 50Ω
Frequency Range DC-3GHz
Dielectric Withstanding Voltage 750V rms
Insulation Resistance ≥1000MΩ
VSWR ≤1.15（DC-3GHz）
Impedance 50Ω
Frequency Range DC-3GHz
Dielectric Withstanding Voltage 750V rms
Insulation Resistance ≥1000MΩ
VSWR ≤1.15（DC-3GHz）

Physical Specifications

Contact Material Brass
Contact Plating Gold
Temperature Range -45℃~+85℃
Durability 500 Cycles
Contact Material Brass
Contact Plating Gold
Temperature Range -45℃~+85℃
Durability 500 Cycles
